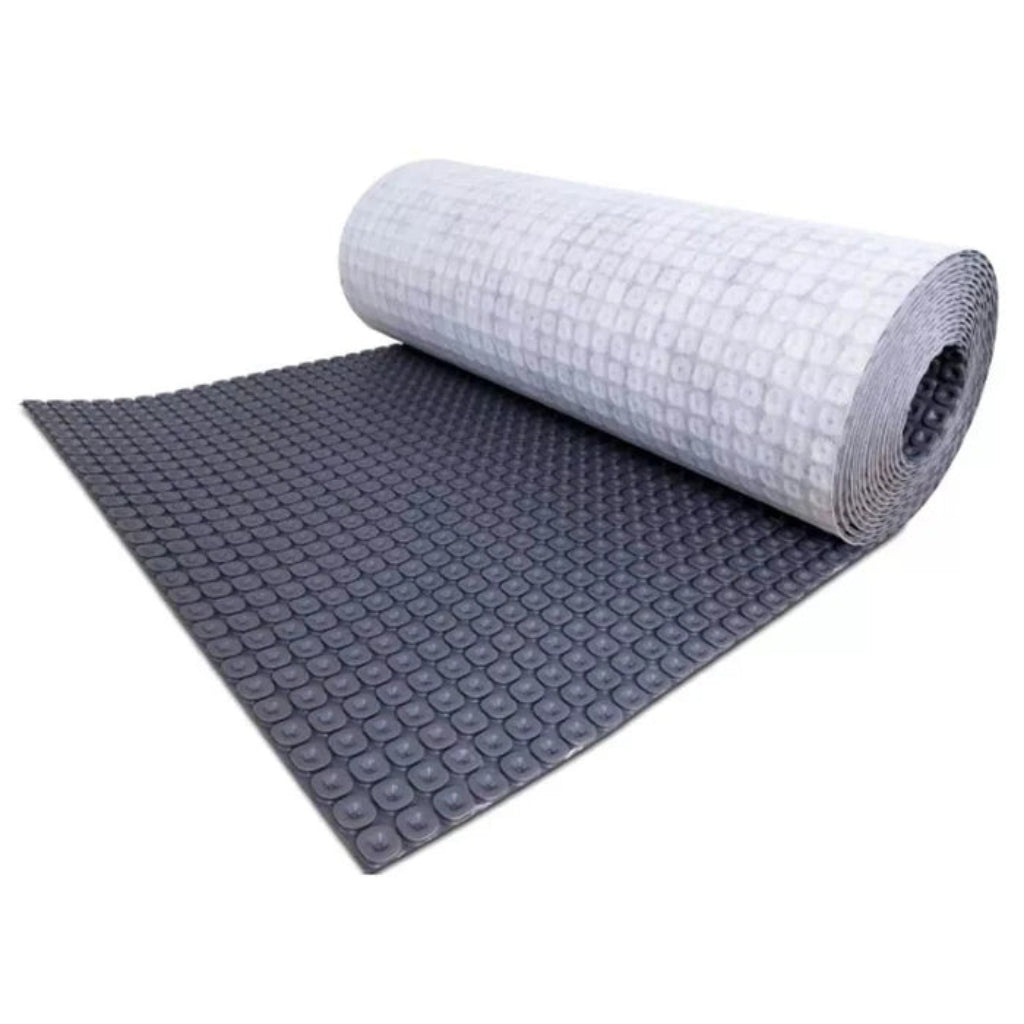

nVent NuHeat AC0105 Uncoupling Heating Membrane 161 Sq Ft Roll (3' 3" x 49' 5")

Membrane is a tile underlayment and uncoupling membrane.

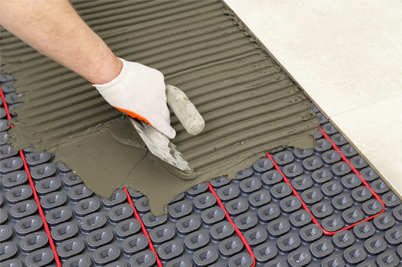

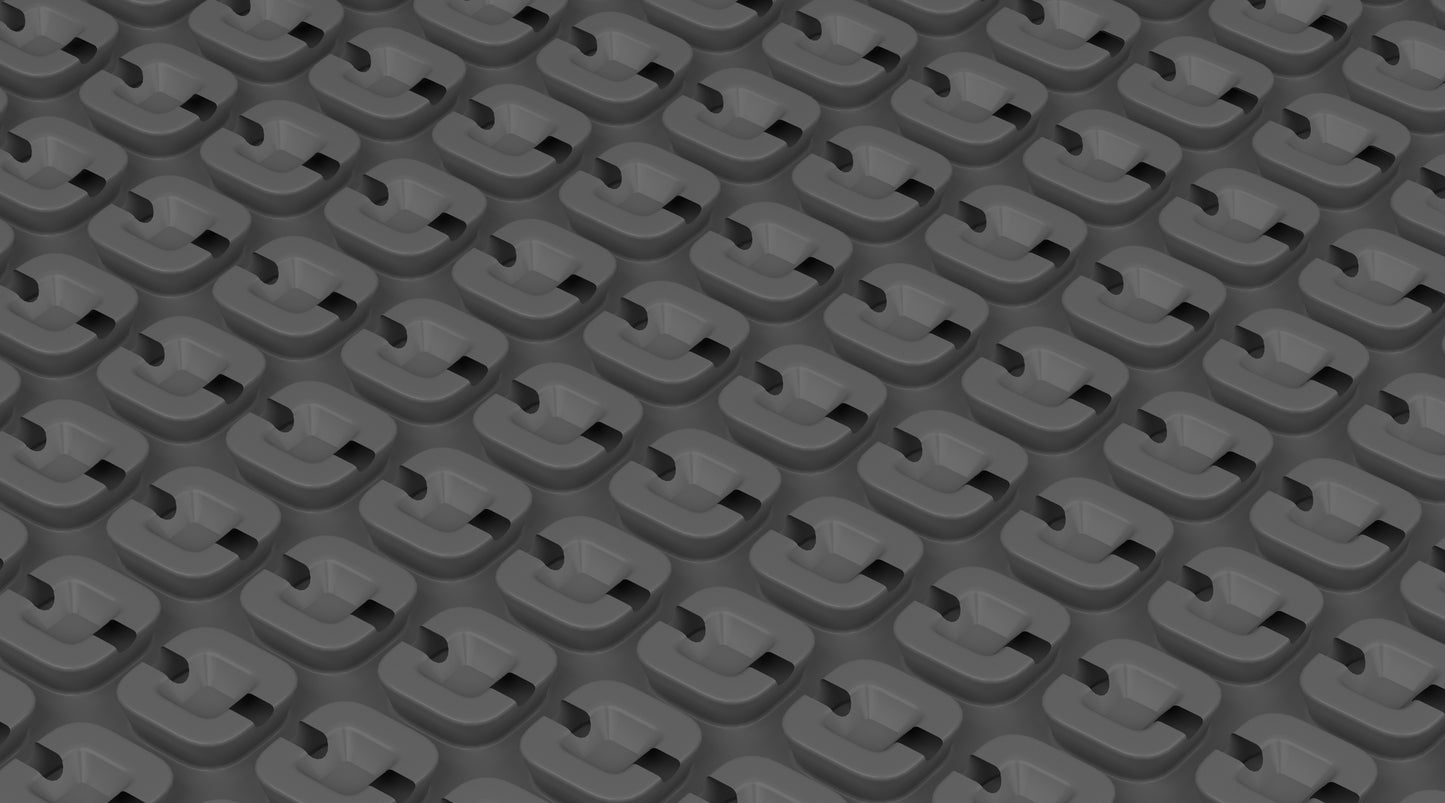

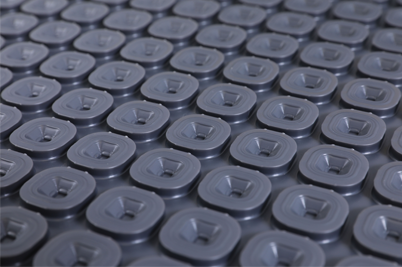

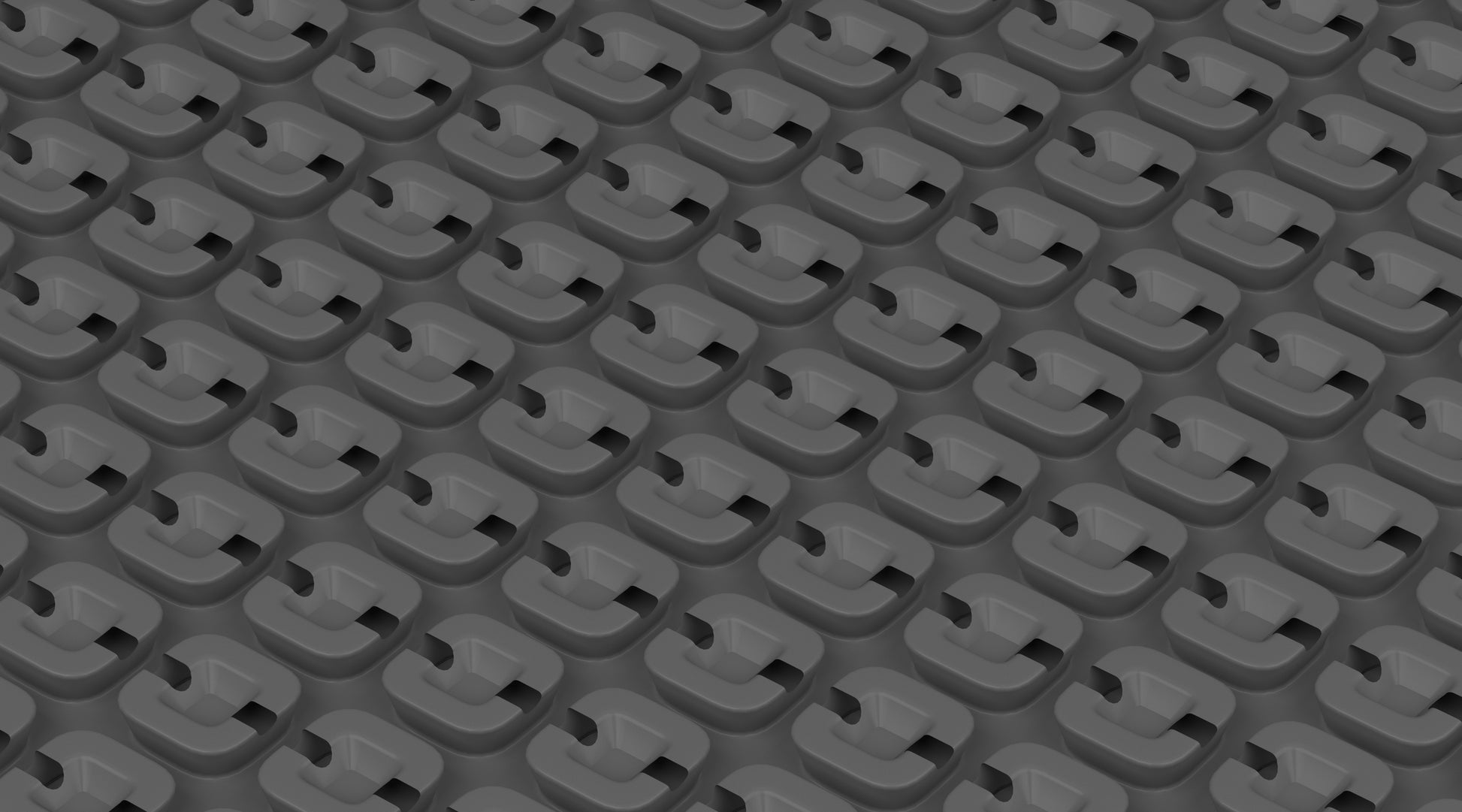

The polypropylene design features square columns that securely lock heating cables in place without cutting or modification. A non-woven backing bonds tightly with thinset mortar, while the membrane structure allows trapped moisture to escape during curing. It can be installed over concrete, plywood, OSB, gypsum underlayment, and cement backer board.

• Designed to work seamlessly with nVent NuHeat electric floor heating cables as part of the Chemelex Heating System.
• Provides uncoupling, crack isolation, and waterproofing to protect tile from substrate movement and moisture.
• Removes the need for an extra layer of plywood or cement board, reducing floor height and installation time.
• Helps distribute radiant heat evenly across tiled surfaces.
• Compatible with most floor tiles, including porcelain, ceramic, marble, granite, natural stone, vinyl, and glass tile.
• Suitable for wet areas such as bathrooms, showers, kitchens, basements, and laundry rooms.

The NUMEM161 Chemelex NuHeat Membrane is an uncoupling and waterproofing underlayment designed specifically for use with nVent NuHeat electric floor heating cables. It creates a stable foundation that protects tile from cracking caused by substrate movement while improving heat distribution for a comfortable, energy-efficient radiant floor system.
